HyperDeck instant replay and sport streaming instant replay: When combining one HyperDeck or an array of Hyperdecks with an Apple iPad running HyperSlow you have a powerful, low cost live slow motion solution, suitable for sports events of all kind.
HyperSlow 3.0 for iOS
- ATEM switcher integration: In SuperPlay (when playing back multiple slow motions sequentially) and Highlight Cut, HyperSlow can switch the corresponding HyperDeck channel to ATEM program output at the exact time. It can also handle stinger or other transitions for first and last scene.

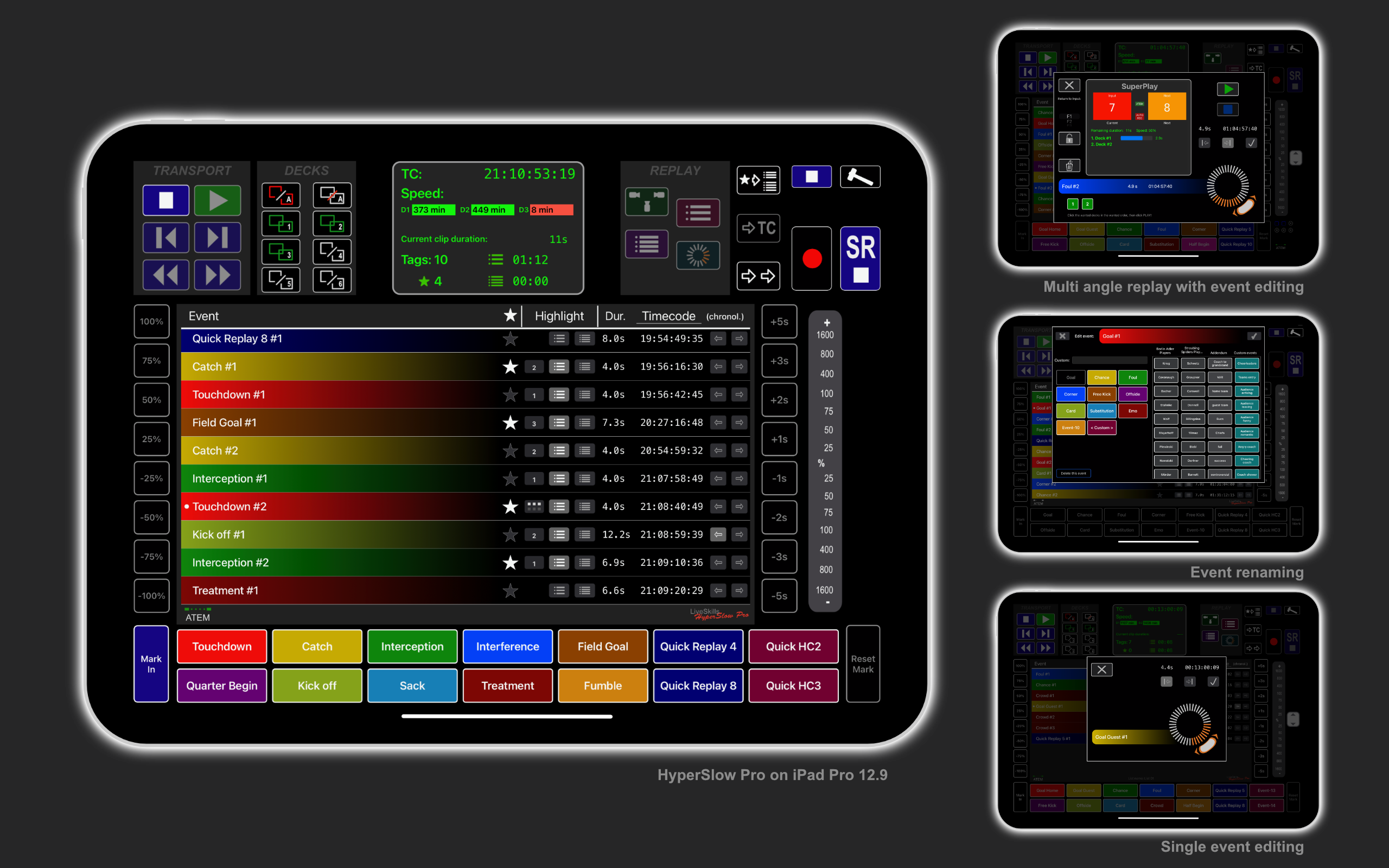

- Use up to 6 “Event” buttons to mark important events and play back these events synchronously from all decks.
- HyperSlow works with timecode synchronised cameras and also without
- Version 3.0 supporting all HyperDecks except HyperDeck Shuttle and HyperDeck 8K. Version 3.0 supporting ATEM software 8.02 and HyperDeck software 7.0.
Features
- Connect your decks with an iPad or iPhone an Ethernet and start recording of all decks concurrently.
- Use the “jump to timecode” button to jump direct to a desired timecode with all decks synchronously.
- From record mode, use the “Stop Reverse” button to jump behind a marked event and start the slow motion playback. You can freely define the number of seconds to be jumped.

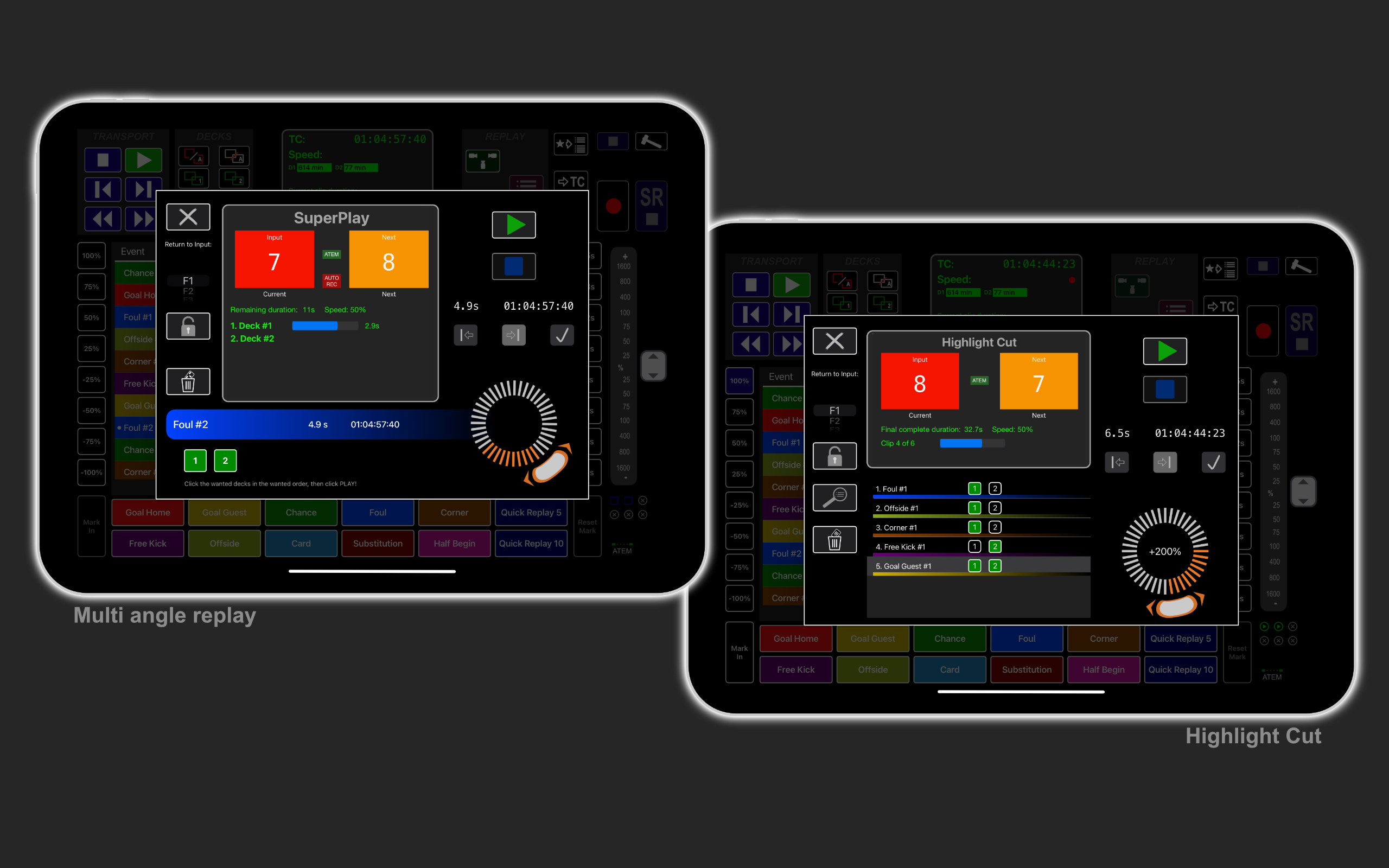

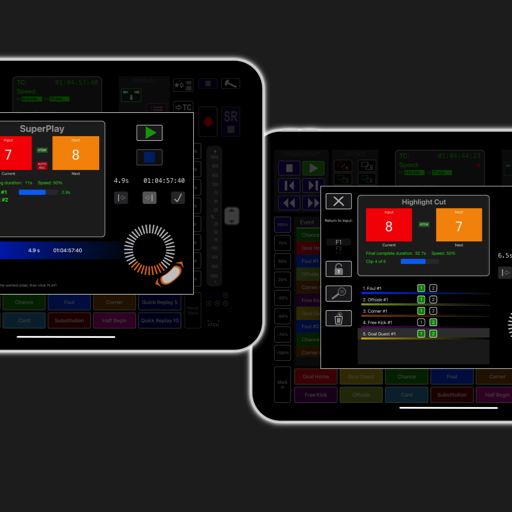

- Use the “SuperPlay” functionality to play back slow motion events as an multi angle replay automatically.
- Use the “Highlight Cut” functionality to play back instant replay sequences with your important moments from one or up to 4 HyperDecks automatically.

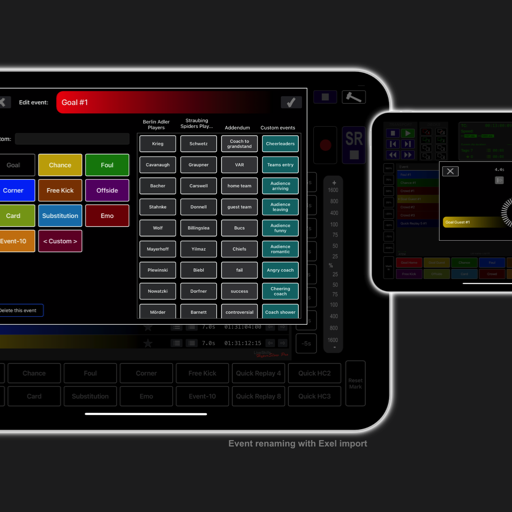

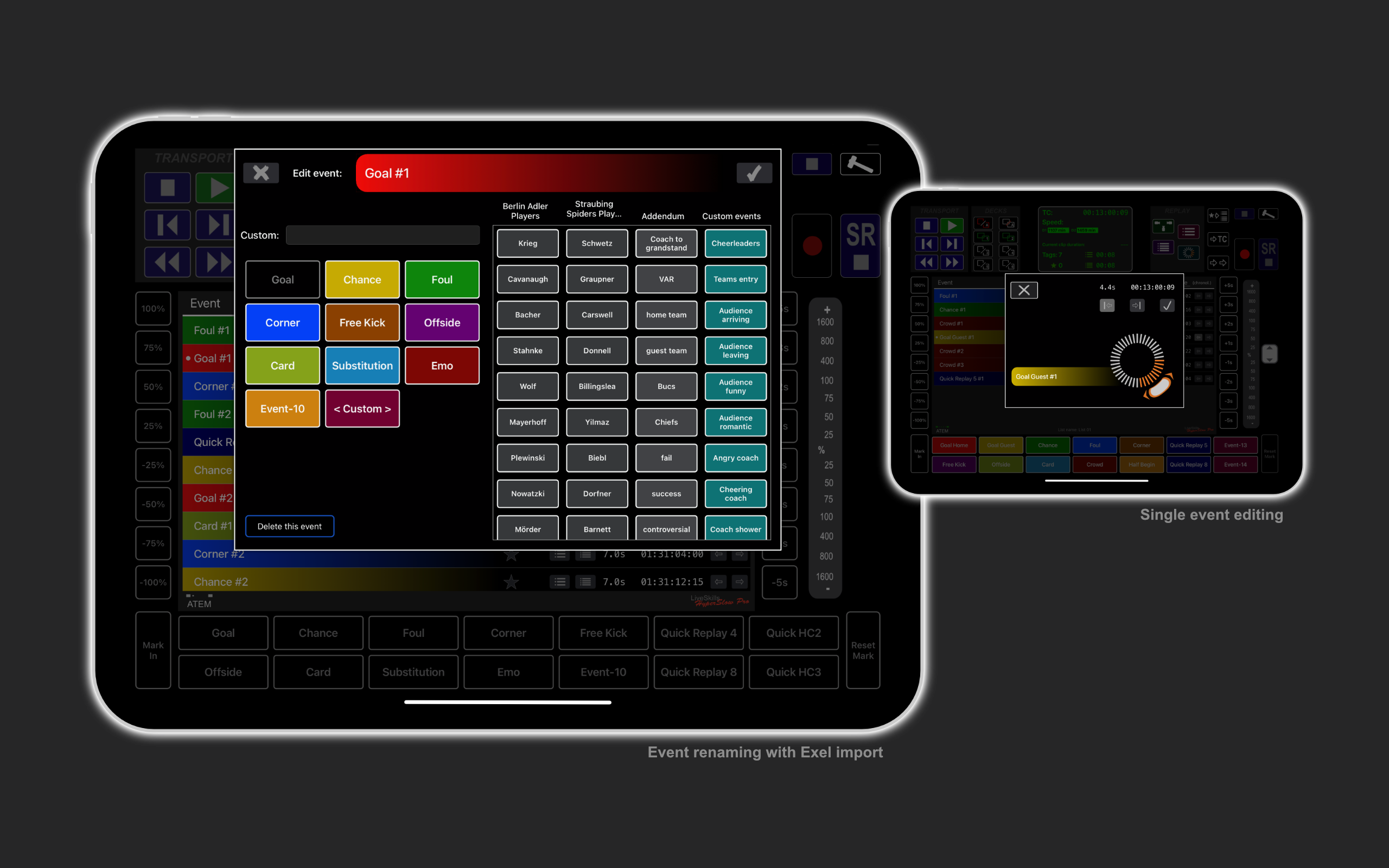

- Use “HyperSlow” to generate your event list, save them, export them to Excel, and to create your own event types depending on the nature of your event.
- Obtain good results in slow motion play back using frame rates of 50/60 fps and 75% play back speed. Achieve at least acceptable results using 50/25% play back speed.
As “HyperSlow” cannot play back and record at the same time, you may need another Hyperdeck or recording device to continue recording while playing back slow motion material.

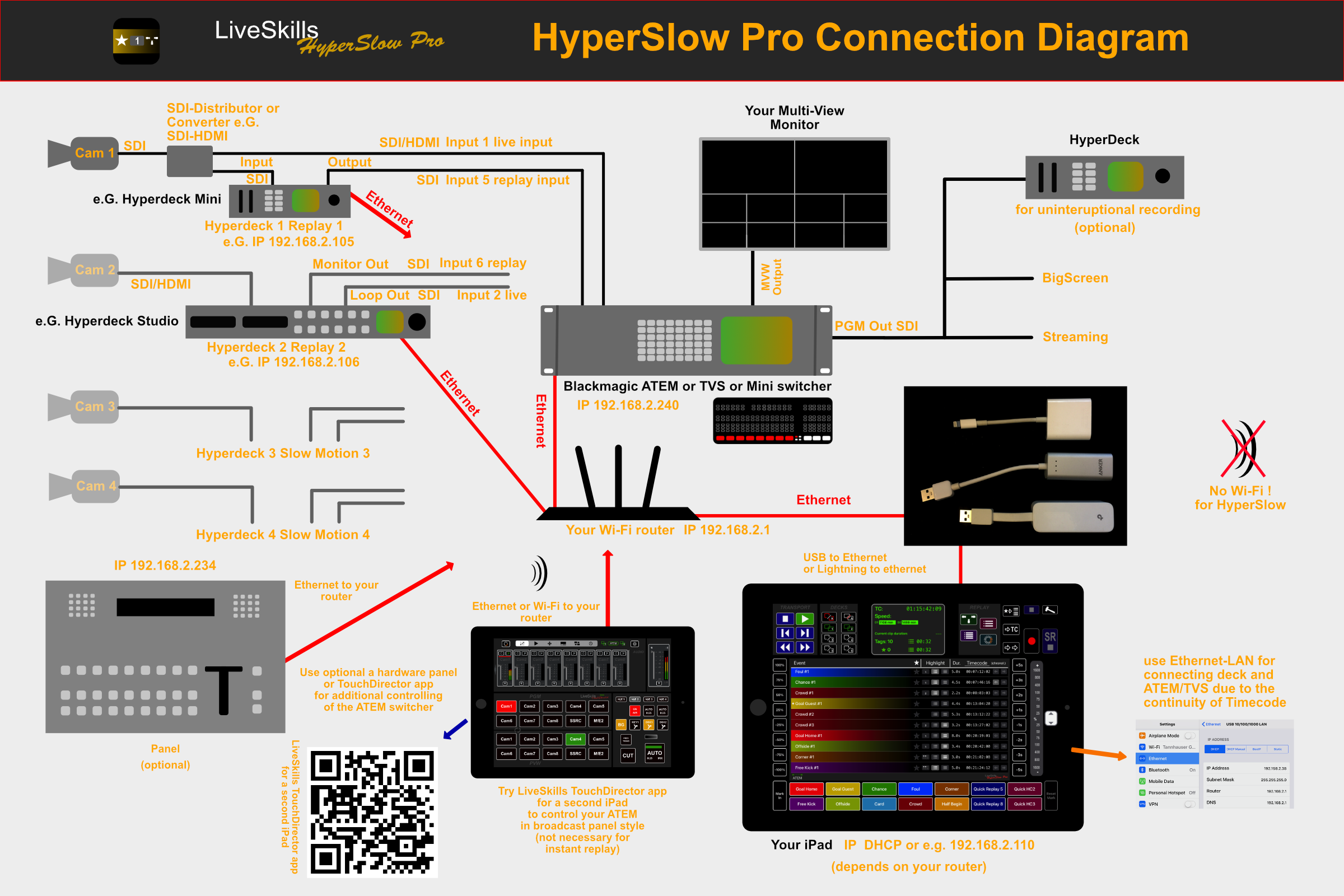

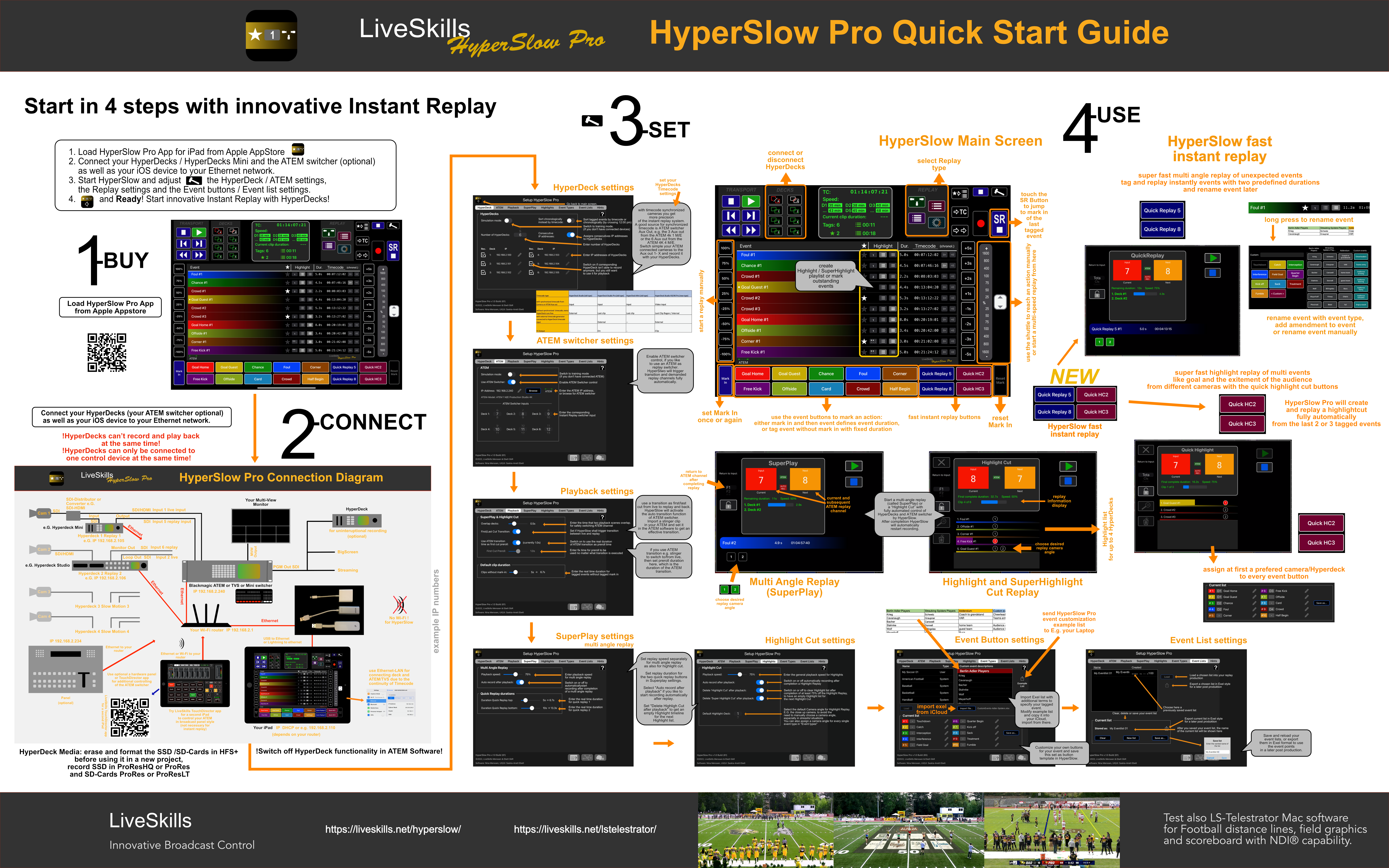

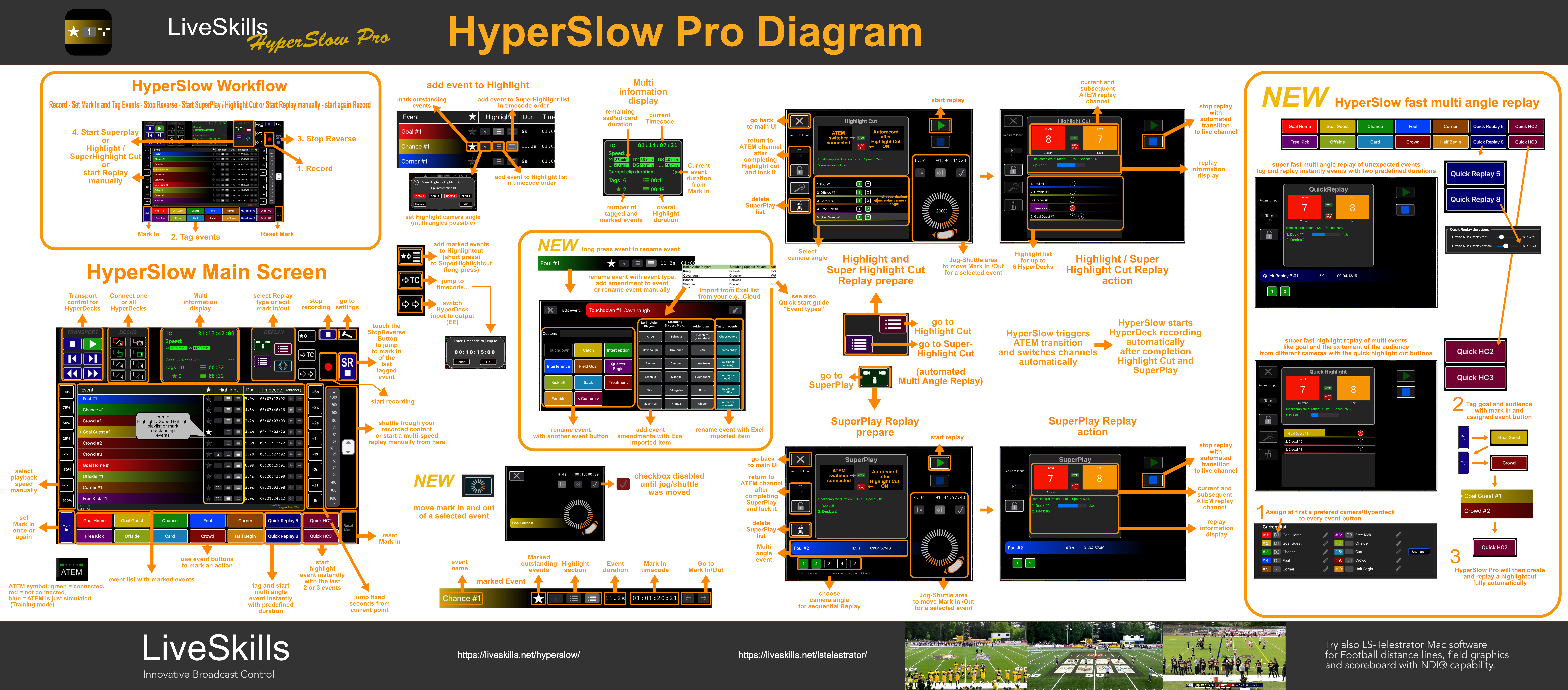

Guides, Overview and Connection Diagram
Watch the HyperSlow 3.0 film
I was looking for an easy and cheap way to record the signal of my visual mixer
In 2014 I bought my first Hyperdeck. I was looking for an easy and cheap way to record the signal of my visual mixer. As time goes by the number of Hyperdecks increased, finally I owned four of them. This way I could also record the signals of each of my cameras. The Hyperdecks were robust and the quality of the recordings was good. Around the end of 2016 customers began to ask for live streaming into the Internet. They wanted to broadcast their events to an audience world wide. And organizers of sports events knocked on my door and wanted to broadcast their sports events.
But how to generate the slow motion clips need for sports broadcasting? Buying an expensive EVS system would have broken the bank.
But stop – a Hyperdeck can playback slower with the jog shuttle. Why not control it externally?
The idea for HyperSlow was born!
With HyperSlow you can create a slow motion system using 1-4 Hyperdecks!

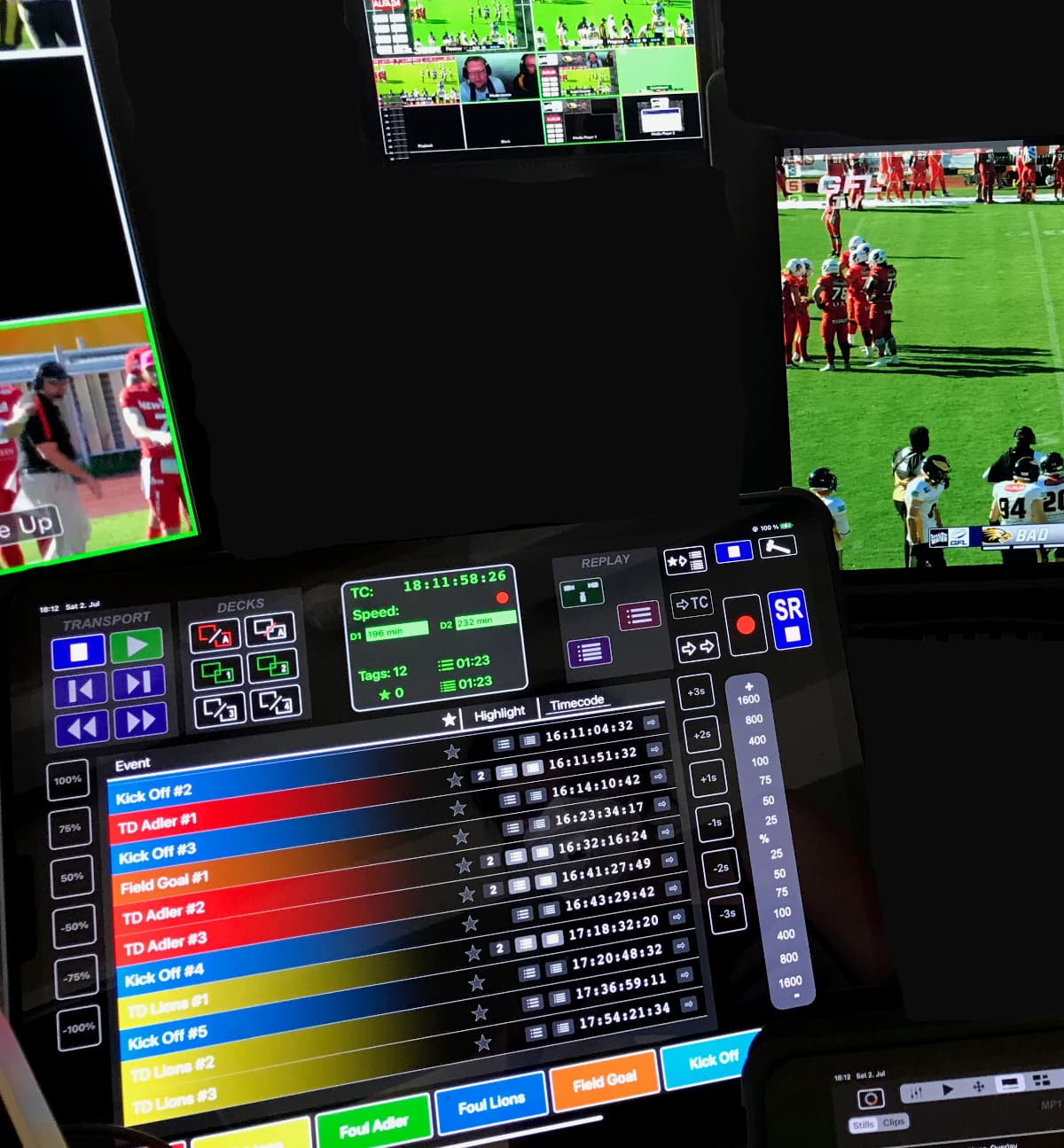

We developed an app for iOS devices, able to control up to 4 Hyperdecks, functions like recording, playback in different speeds, tagging and visiting events. When the cameras use synchronized time code, you can even play a slow motion from several camera perspectives one after the other using the “SuperPlay” function! The system has already proven its practicality in many live events. After sports, we took more and more types of events into consideration for use with HyperSlow. The list management of events offered the option to e.g. tag speakers on conferences and have an event list for post production.
Meanwhile we use HyperSlow in every production. Based on our experiences we will continue to further develop the app, and we have great ideas for the future!
As “HyperSlow” cannot play back and record at the same time, you may need another Hyperdeck or recording device to continue recording while playing back slow motion material.
MADE IN BERLIN
LiveSkills is dedicated to combine the power of broadcast equipment with the ease of use and the mobility of iOS devices. We have a long history in both, software development for iOS and macOS as well as broadcasting events to a worldwide audience. Our products have already proven their practicality in many live events and offer a low-cost, reliable and satisfying solution.
